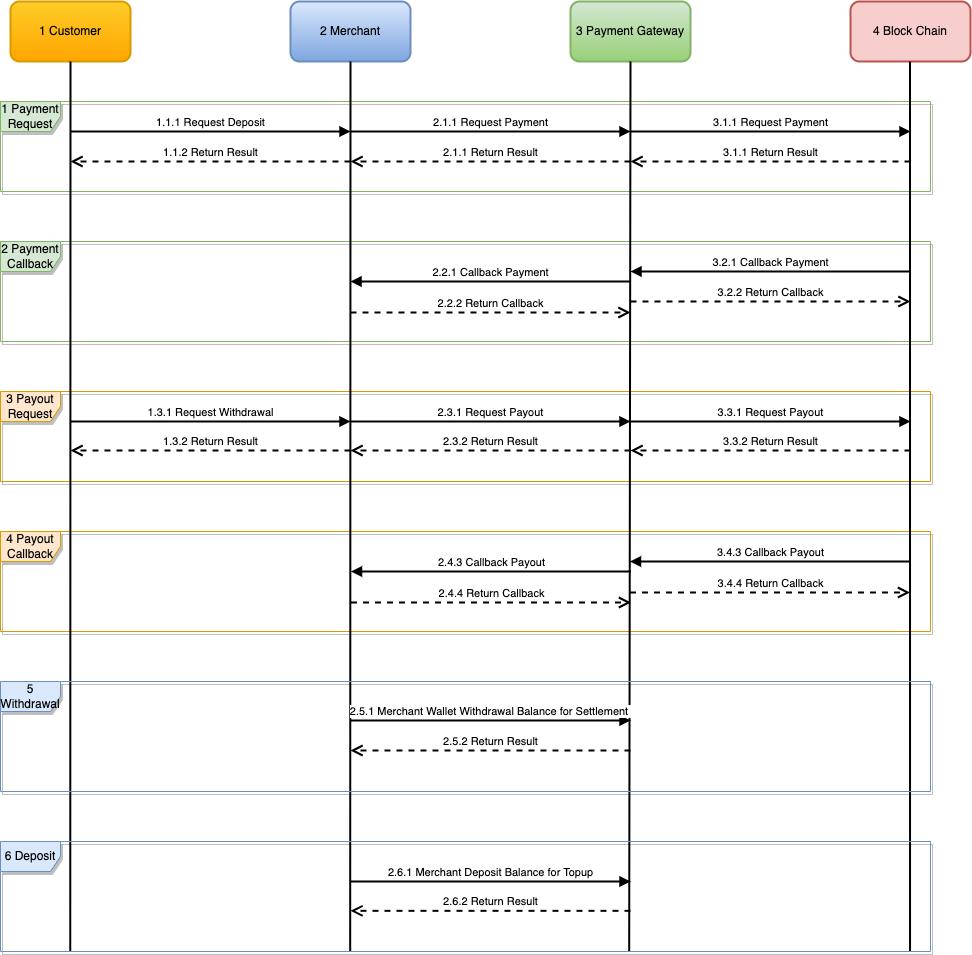

• Business Process
• Interface Rules
• Error Code
• API list
  • Pay Address
  • Unified Order
  • Order Callback
  • Order Query
  • Balance Query

• Xpay Payment is a leading payment technology solution in the whole network, dedicated to helping enterprises quickly access a stable and reliable payment system at the lowest cost, and assist them in completing business decisions with visual data. As a payment service provider with data services as its core competitiveness, we not only pay attention to the high concurrency and high availability of the payment system, but also pay attention to mining the huge value behind the payment, and pay attention to the growth of each partner enterprise.

• Xpay API provides mainstream payment channels such as USDT/TRX/ETH/BTC and other mainstream crypto assets for enterprise application developers, providing a one-stop solution Transaction issues such as payment access, information verification, and data analysis.

• At the same time, we firmly believe that payment is not only the end of the transaction, but also the beginning of the transaction. In the future, we will focus on data-driven business growth for users, assist enterprises in business decision-making, and maximize the value of every payment transaction.

Protocol Rules

HEADER SPECIFICATION

1. Request Content-Type: content-type
set the Header value to JSON format. Example: application/json; charset=UTF-8
2. Request Accept: accept
set the Header value to JSON format. Example: application/json; charset=UTF-8
3. Request URL address: x-ca-resturl
set the Header value to the URL address of the unified order and etc request. Example: https://pay.xpay88.io/pay/unifiedorder
4. Request timestamp: x-ca-timestamp
set the Header value to the millisecond or higher precision timestamp (millisecond/microsecond/nanosecond) of the current request. Example: millisecond timestamp 1586007620038
5. Request random number: x-ca-noncestr
set the Header value to a 32-bit system random number to prevent repeated requests. Example: MD5 (system random number)
6. Request authorization KEY: x-ca-auth
set the Header value to the key obtained by the merchant applying for the API interface. example: fa1f6903307460e099a92afa9431155a
7. Request signature: x-ca-signature
set the Header value to a signature calculated using the SHA1WithRSA signature algorithm, and the signature will be verified by the server. For specific algorithm rules, please refer to the next section

Requested/Returned Signature and Verification Algorithms

The first step, the merchant system API interface will assign the key and the payment platform data public key platform_pubKey , and use the Alipay RSA signature verification toolgenerate the merchant data by itself RSA key pair (private key priKey and public key pubKey , note: non-JAVA applies to 2048 pkcs1s):

key: the key corresponding to the merchant system API
priKey: the RSA private key that signs the merchant system request data
pubKey: the RSA public key that the payment platform verifies the merchant system request data
platform_pubKey: the merchant system to the payment platform Returns the RSA public key for data verification

The second step, spell the string to be signed , the rules are as follows:

string =

URI in UTF8 format string
URI query parameter in UTF8 format string
x-ca-noncestr Header value in UTF8 format string
x-ca-timestamp Header value in UTF8 format string
POST request JSON data in UTF8 format string

Example: (Note: A blank line means that the URI query parameter of the request is empty)
string =

/pay/unifiedorder

aa7a97e0dc6b913ea2994522168ff0db
1686952313222
{"amount":1.5,"mchid":100000,"out_trade_no":"17062023055153221","subject":"xpay_payment_test","channel":"xpay_pay_usdt_trc20","return_url":"https://xpay88.io/demo.html","currency":"USDT","client_ip":"3.6.93.106","body":"xpay_payment_test","notify_url":"https://pay.xpay88.io/demo/demonotify","userid":"demopay"}

The third step is to use the SHA1WithRSA signature algorithm to calculate the x-ca-signature signature, as follows:

1. Perform Base64 operation on the signature string to obtain the sign value
2. Read the merchant private key priKey and convert it to the openssl key private key
3. Pass the sign value and private key into the SHA1WithRSA signature algorithm to calculate the signature
4. Perform Base64 operation on signature to get x-ca-signature value

Step 4: After the payment platform receives the request from the merchant system, it will verify the request data. If the verification fails, the result of failure is returned; if the verification passes, the corresponding payment business logic is executed and the corresponding result is returned. The payment platform performs the SHA1WithRSA signature algorithm on the Response Data. Examples of the Response Body and Header are as follows:

Response Body:
{"result_code":"OK","result_msg":"SUCCESS","charge":{"channel":"xpay_pay_usdt_trc20","out_trade_no":"17062023022949219","client_ip":"3.6.93.106","amount":"1.5","currency":"USDT","subject":"xpay_payment_test","body":"xpay_payment_test","extparam":[],"credential":{"merch_id":"100000","merch_name":"demo","merch_domain":"https://www.demo.com","out_trade_no":"17062023022949219","trade_no":"0c6002169b3e0e21a2dc646025354fd6","currency":"USDT","network":"TRON","pay_amount":1.5,"pay_channel":"xpay_pay_usdt_trc20","pay_account":"TEwcNd2rdQFp6wBYqvcYL7fbNSrfJtyeZk","fiatrate":"0.000","return_url":"https://pay.xpay88.io/demo.html","time":1686943790,"query_signature":"3f8cd3c4040ccb41ea0bd00756e29482980d90e55047f3d6d76e8dba725c9037","cashier_url":"https://pay.xpay88.io/cashier/payusdt?data=MzE=","merchant_wallet":{"uid":"100000","currency":"USDT","total_limit_credits":"0.00","total_security_deposit_credits":"0.00","total_unsettled_credits":"0.00","total_hold_credits":"0.00","total_commission_credits":"4.18","total_available_credits":"135.41"}}}}

Response Header:
x-ca-timestamp: 1686952314478
x-ca-noncestr: CC6D5CA569F0CEBE99206AAF6B25653C
x-ca-signature: bZ59iGF5u3/53nwqULgFwGl9mzOmKppav4mH/W6buq8AL7OHlrl6YPOb83HYpSCkVYARcz1rn1ahpuhjFXj9wQnLqB1a/23uR7z4pTnyv7HNWpbXarUJ8X1fLMdohEkHnIhPPSnL/gsJoJol8qyQfwLNFxOBE3M2gOKFQJ5/d3TeOqvbTpO6E+GJ51VmNwVEaJ3tVLZ3vvDpEWIhyLe4lJ7KgUMkzXKjW4yIZe/ghWXGzBZtbGea6XjehTAnLFmnqzRdFGCvOTQ2HAdO0IhY4g86roTpdWA73KWPmYYlAs4a4pdivy5tEwzn5KEMs1tt3LGhMzQoW5947OrXy7tAFQ==

Step 5: After the merchant system receives the Response Data, in order to ensure payment security, it is strongly recommended that the merchant verify the Response Data and add our callback IP address to the whitelist, before proceeding with corresponding business processing. The signature verification algorithm is as follows:

Spell the string to be checked and signed , the rules are as follows:
string =

x-ca-noncestr Header value in UTF8 format string
x-ca-timestamp Header value in UTF8 Format string
Response Body JSON data in UTF8 format string

Then perform Base64 operation on the string to be verified to obtain the verify value, and input the returned Header x-ca-signature value, verify value , the platform data public key platform_pubKey. These three parameters implement the SHA1WithRSA signature verification algorithm.

Error Code

Business Description

Pay address interface, the merchant system first calls this interface to generate a prepaid transaction order in the payment service background

Interface Gateway

URL address: https://pay.xpay88.io/pay/payaddress Note: This interface is a test interface, please ask the sales person for it

Request Parameter

Request Data

The following is a sample data of an order request

{
	"mchid": 100000,
	"channel": "xpay_address_usdt_trc20",
	"return_url": "https://xpay88.io/demo.html",
	"currency": "USDT",
	"client_ip": "3.6.93.106",
	"notify_url": "https://pay.xpay88.io/demo/demonotify",
	"userid": "demopay"
}

Return Parameter

Return Result

{
	"result_code": "OK",
	"result_msg": "SUCCESS",
	"charge": {
		"merch_id": 100000,
		"merch_name": "demo",
		"merch_domain": "https://www.demo.com",
		"userid": "demopay",
		"currency": "USDT",
		"network": "TRON",
		"pay_channel": "xpay_address_usdt_trc20",
		"pay_account": "TEwcNd2rdQFp6wBYqvcYL7fbNSrfJtyeZk",
		"fiatrate": "0.000",
		"return_url": "https://xpay88.io/demo.html",
		"time": 1687148404,
		"query_signature": "851410233da62d1b3fb3494d8d650a75a73af3cb9c8c6c741089f58970a02942",
		"cashier_url": "https://pay.xpay88.io/cashier/addressusdt?data=MQ=="
	}
}

[error] This is the error return information only have error_code 和 error_msg in the returned JSON data

{
	"error_msg": "Invalid Request.[ Request header [authentication] Failure.]",
	"error_code": 400000
}

Business Description

Unified order interface, the merchant system first calls this interface to generate a prepaid transaction order in the payment service background

Interface Gateway

URL address: https://pay.xpay88.io/pay/unifiedorder Note: This interface is a test interface, please ask the sales person for it

Request Parameter

[warning] extparam parameter description

When the channel is a payment request (xpay_payout_usdt_trc20 or xpay_payout_trx), extparam needs to add crypto/network/address parameters:

{"address":"TNcsiLztUSgEfXFBvmwCy2iU5TytccUTjY","crypto":"USDT","network":"TRON"}

Request Data

The following is a sample data of an order request

{
	"extparam": {
		"address": "TNcsiLztUSgEfXFBvmwCy2iU5TytccUTjY",
		"crypto": "USDT",
		"network": "TRON"
	},
	"amount": 1.11,
	"mchid": 100000,
	"out_trade_no": "17062023060452453",
	"subject": "xpay_payout_test",
	"channel": "xpay_payout_usdt_trc20",
	"return_url": "https://xpay88.io/demo.html",
	"currency": "USDT",
	"client_ip": "3.6.93.106",
	"body": "xpay_payout_test",
	"notify_url": "https://pay.xpay88.io/demo/demonotify",
	"userid": "demopay"
}

Return Parameter

Return Result

[success] This is the successful return information, only when result_code=OK and result_msg= SUCCESS in the returned JSON data can charge

{
	"result_code": "OK",
	"result_msg": "SUCCESS",
	"charge": {
		"out_trade_no": "17062023060452453",
		"trade_no": "3495f19b3b84c5d3db3b61bef94cc681",
		"merchant_wallet": {
			"uid": "100000",
			"currency": "USDT",
			"total_limit_credits": "0.00",
			"total_security_deposit_credits": "0.00",
			"total_unsettled_credits": "2.11",
			"total_hold_credits": "0.00",
			"total_commission_credits": "15.18",
			"total_available_credits": "90.53"
		}
	}
}

[error] This is the error return information only have error_code 和 error_msg in the returned JSON data

{
	"error_msg": "Invalid Request.[ Request header [authentication] Failure.]",
	"error_code": 400000
}

Callback Scenario

After the payment is completed, the payment center will send the relevant payment results and related information to the merchant, and the merchant needs to receive and process it and return a response. When interacting with notifications in the background, if the payment center receives a response from the merchant that is not successful or timed out, the payment center considers the notification to fail, and will periodically re-send the notification within a certain strategy to increase the success rate of the notification as much as possible. However, there is no guarantee that the notification will ultimately succeed. (The notification frequency is 15/15/30/180/1800/1800/1800/1800/3600 , unit: seconds)

[warning]Note: The same notification may be sent to the merchant system multiple times. Merchant systems must be able to properly handle duplicate notifications. The recommended practice is that when receiving a notification for processing, first check the status of the corresponding business data to determine whether the notification has been processed. Before checking and processing business data, use data locks for concurrency control to avoid data confusion caused by function reentrancy.

[danger] Special reminder: The merchant system must perform signature verification on the content of the order callback, and verify whether the returned order amount is consistent with the order amount on the merchant side, to prevent data leakage from causing "false notifications", cause financial loss.

Interface Gateway

Unify the settings of the parameter notify_url submitted by the order interface . If the link cannot be accessed, your business system will not be able to receive notifications from the payment center.

Callback and Reply Format

Callback Data

The following is the data sample of the successful callback
[warning] Note: status is order business status
0-closed
1-waiting
2-success
3-failure
4-paying
5-settled
6-refunded
7-dispute

{
	"result_code": "OK",
	"result_msg": "SUCCESS",
	"charge": {
		"uid": "100000",
		"userid": "demopay",
		"out_trade_no": "17062023060452453",
		"trade_no": "3495f19b3b84c5d3db3b61bef94cc681",
		"in_trade_no": "0744e291231080e3647e6e55b5c3998b",
		"subject": "xpay_payout_test",
		"body": "xpay_payout_test",
		"channel": "xpay_payout_usdt_trc20",
		"paytype": "0",
		"account_id": "TNcsiLztUSgEfXFBvmwCy2iU5TytccUTjY",
		"extra": "{\"address\":\"TNcsiLztUSgEfXFBvmwCy2iU5TytccUTjY\",\"crypto\":\"USDT\",\"network\":\"TRON\"}",
		"currency": "USDT",
		"amount": "1.110",
		"pay_amount": "1.110",
		"amount_paid": "1.110",
		"currency_paid": "USDT",
		"network_paid": "TRON",
		"keyword": "29850e17900284189a42cce0117956f8b445c3e1bd20ef84ec7b79af47d1b33f",
		"urate": "0.000",
		"ufixed_fee": "1.000",
		"user_in": "2.110",
		"client_ip": "3.6.93.106",
		"return_url": "https://xpay88.io/demo.html",
		"notify_url": "https://pay.xpay88.io/demo/demonotify",
		"image_list": null,
		"image_text": null,
		"remark": "{\"errno\":0,\"serial\":\"0744e291231080e3647e6e55b5c3998b\",\"balance\":\"77.62\"}",
		"create_time": "1686953093",
		"update_time": "1686953106",
		"out_status": "1",
		"status": 2,
		"is_status": "0",
		"merchant_wallet": {
			"uid": "100000",
			"currency": "USDT",
			"total_limit_credits": "0.00",
			"total_security_deposit_credits": "0.00",
			"total_unsettled_credits": "0.00",
			"total_hold_credits": "0.00",
			"total_commission_credits": "16.18",
			"total_available_credits": "90.53"
		}
	}
}

Response Data

The following is a sample data for a successful response

{
	"result_code": "OK",
	"result_msg": "SUCCESS"
}

The following is a sample data of a failed response

{
	"result_code": "OK",
	"result_msg": "FAIL"
}

Interface Gateway

URL address: https://pay.xpay88.io/pay/orderquery Note: This interface is a test interface, please ask the sales staff for it

Request Parameters

Request Data

The following is a sample data of an order request

{
	"mchid": 100000,
	"out_trade_no": "17062023045651562",
	"channel": "xpay_payout_usdt_trc20"
}

Return Format

Return Result

[success] This is the successful return information, only when result_code=OK and result_msg= SUCCESS in the returned JSON data can charge

[warning] Note: status is order business status
0-closed
1-waiting
2-success
3-failure
4-paying
5-settled
6-refunded
7-dispute

{
	"result_code": "OK",
	"result_msg": "SUCCESS",
	"charge": {
		"uid": "100000", # 商户ID
		"userid": "demopay", # 商户会员ID,必须唯一
		"out_trade_no": "17062023060452453", # 商户订单号
		"trade_no": "3495f19b3b84c5d3db3b61bef94cc681", # 三方订单号
		"in_trade_no": "0744e291231080e3647e6e55b5c3998b", # 上游订单号
		"subject": "xpay_payout_test", # 商品描述
		"body": "xpay_payout_test", # 商品信息
		"channel": "xpay_payout_usdt_trc20", # 支付产品
		"paytype": "0", # 代收代付标识，1为代收，0为代付
		"account_id": "TNcsiLztUSgEfXFBvmwCy2iU5TytccUTjY", # 收款地址
		"extra": "{\"address\":\"TNcsiLztUSgEfXFBvmwCy2iU5TytccUTjY\",\"crypto\":\"USDT\",\"network\":\"TRON\"}", # 提单额外参数
		"currency": "USDT", # 提单币种
		"amount": "1.110", # 提单金额
		"pay_amount": "1.110", # 收银支付金额
		"amount_paid": "1.110", # 实际金额
		"currency_paid": "USDT", # 实际币种
		"network_paid": "TRON", # 实际网络
		"keyword": "29850e17900284189a42cce0117956f8b445c3e1bd20ef84ec7b79af47d1b33f", # 关键字-区块链交易ID
		"urate": "0.000", # 佣金比例
		"ufixed_fee": "1.000", # 单笔费用
		"user_in": "2.110", # 商户收入 或 商户费用
		"client_ip": "3.6.93.106", # 会员IP
		"return_url": "https://xpay88.io/demo.html", # 同步回调地址
		"notify_url": "https://pay.xpay88.io/demo/demonotify", # 异步通知地址
		"image_list": null, # 凭证图片
		"image_text": null, # 凭证内容
		"remark": "{\"errno\":0,\"serial\":\"0744e291231080e3647e6e55b5c3998b\",\"balance\":\"77.62\"}", # 备注信息
		"create_time": "1686953093", # 订单创建时间戳
		"update_time": "1686953106", # 订单更新时间戳
		"out_status": "1", # 商户提单状态
		"status": 2, # 三方订单状态
		"is_status": "0", # 通知状态
	}
}

[error] This is the error return information only have error_code 和 error_msg in the returned JSON data

{
	"error_msg": "Invalid Request.[ Request header [authentication] Failure.]",
	"error_code": 400000
}

Interface Gateway

URL address: https://pay.xpay88.io/pay/balancequery Note: This interface is a test interface, please ask the sales staff for it

Request Parameters

Request Data

The following is a sample data of an order request

{
	"mchid": 100000,
	"currency": "USDT"
}

Return Format

Return Result

[success] This is the successful return information, only when result_code=OK and result_msg= SUCCESS in the returned JSON data can charge

{
	"result_code": "OK",
	"result_msg": "SUCCESS",
	"charge": [
		{
			"uid": "100000",
			"currency": "USDT",
			"limit_credits": "0.000",
			"security_deposit_credits": "0.000",
			"unsettled_credits": "0.000",
			"hold_credits": "0.000",
			"commission_credits": "13.188",
			"available_credits": "96.862"
		}
	]
}

[error] This is the error return information only have error_code 和 error_msg in the returned JSON data

{
	"error_msg": "Invalid Request.[ Request header [authentication] Failure.]",
	"error_code": 400000
}
